Motorized Machine Skates | MH-B Series 20-50T Battery Powered Skate
MHBY motorized machine skates (MH-B series) are battery powered, remote-controlled load moving skates for relocating 20–50 ton machinery on a budget. These self-propelled electric machine skates replace crowbars, forklifts and multi-person crews in daily equipment moves — safe, quiet and precise in narrow workshops.
Summary of Key Features
- C7 Wireless Remote Control
- 1-Year Full Machine Warranty
- Q355B Manganese Steel Plate
Full specifications below.
| MODEL | MH20B | MH25B | MH30B | MH35B | MH40B | MH50B |
|---|---|---|---|---|---|---|
| Traction Capacity | 20000 kg (44000 lbs) | 25000 kg (55000 lbs) | 30000 kg (66000 lbs) | 35000 kg (77000 lbs) | 40000 kg (88000 lbs) | 50000 kg (110000 lbs) |
| Load Capacity | 10000 kg (22000 lbs) | 12500 kg (27500 lbs) | 15000 kg (33000 lbs) | 17500 kg (38500 lbs) | 20000 kg (44000 lbs) | 25000 kg (55000 lbs) |
| Drive Motor | 1500 W (2 × 750 W motors) | 1500 W (2 × 750 W motors) | 2000 W (2 × 1000 W motors) | 3000 W (2 × 1500 W motors) | 4000 W (2 × 2000 W motors) | 5000 W (2 × 2500 W motors) |
| Power Battery | 48 V / 60 AH | 48 V / 60 AH | 48 V / 60 AH | 48 V / 60 AH | 48 V / 120 AH | 48 V / 120 AH |
| Continuous Battery Runtime | 4–5 Hours Continuous Working Time | |||||
| Drive Wheel Specification | 4 Pcs, 100 × 130 mm (4 × 5 in.) | 4 Pcs, 100 × 130 mm (4 × 5 in.) | 4 Pcs, 100 × 130 mm (4 × 5 in.) | 4 Pcs, 120 × 155 mm (4 3/4 × 6 1/8 in.) | 4 Pcs, 120 × 155 mm (4 3/4 × 6 1/8 in.) | 4 Pcs, 120 × 155 mm (4 3/4 × 6 1/8 in.) |
| Travel Speed | 10 m/min (0.37 mph), Stable Low-Speed Heavy Load Travel | |||||
| Overall Dimensions (L × W × H) | 680 × 670 × 165 mm (26 3/4 × 26 3/8 × 6 1/2 in.) | 680 × 670 × 165 mm (26 3/4 × 26 3/8 × 6 1/2 in.) | 720 × 680 × 180 mm (28 3/8 × 26 3/4 × 7 in.) | 800 × 740 × 200 mm (31 1/2 × 29 1/8 × 7 7/8 in.) | 800 × 740 × 200 mm (31 1/2 × 29 1/8 × 7 7/8 in.) | 810 × 820 × 200 mm (31 7/8 × 32 1/4 × 7 7/8 in.) |
| Net Machine Weight | 126 kg (277 lbs) | 130 kg (286 lbs) | 145 kg (319 lbs) | 208 kg (458 lbs) | 212 kg (466 lbs) | 220 kg (484 lbs) |
How These Motorized Machine Skates Work

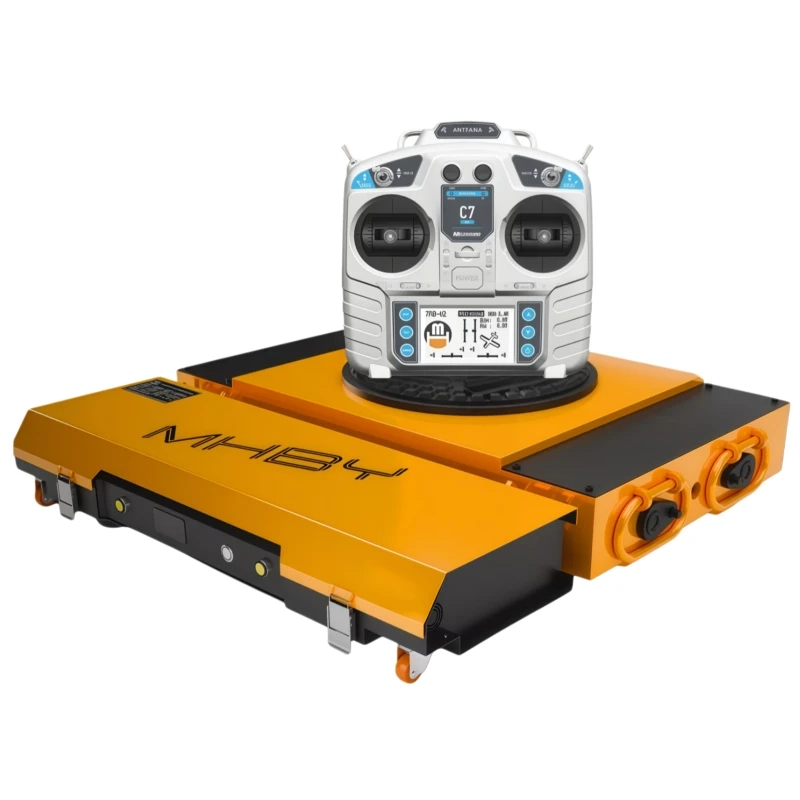

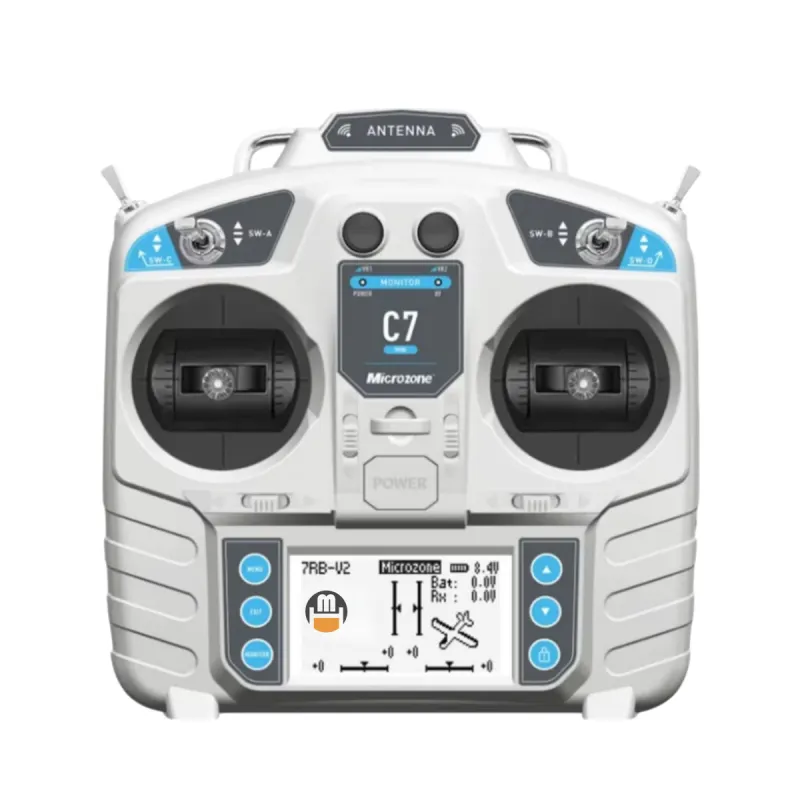

Each MH-B series skate pairs a 48V battery with dual drive motors and polyurethane drive wheels under a Q355B manganese steel frame. The C7 wireless remote lets a single operator drive, steer and stop loads up to 50T traction — no pushing, no towing vehicle, no trailing cables. Battery runtime is 4–5 hours of continuous work, and the charger accepts 110–260V worldwide.
Typical Applications

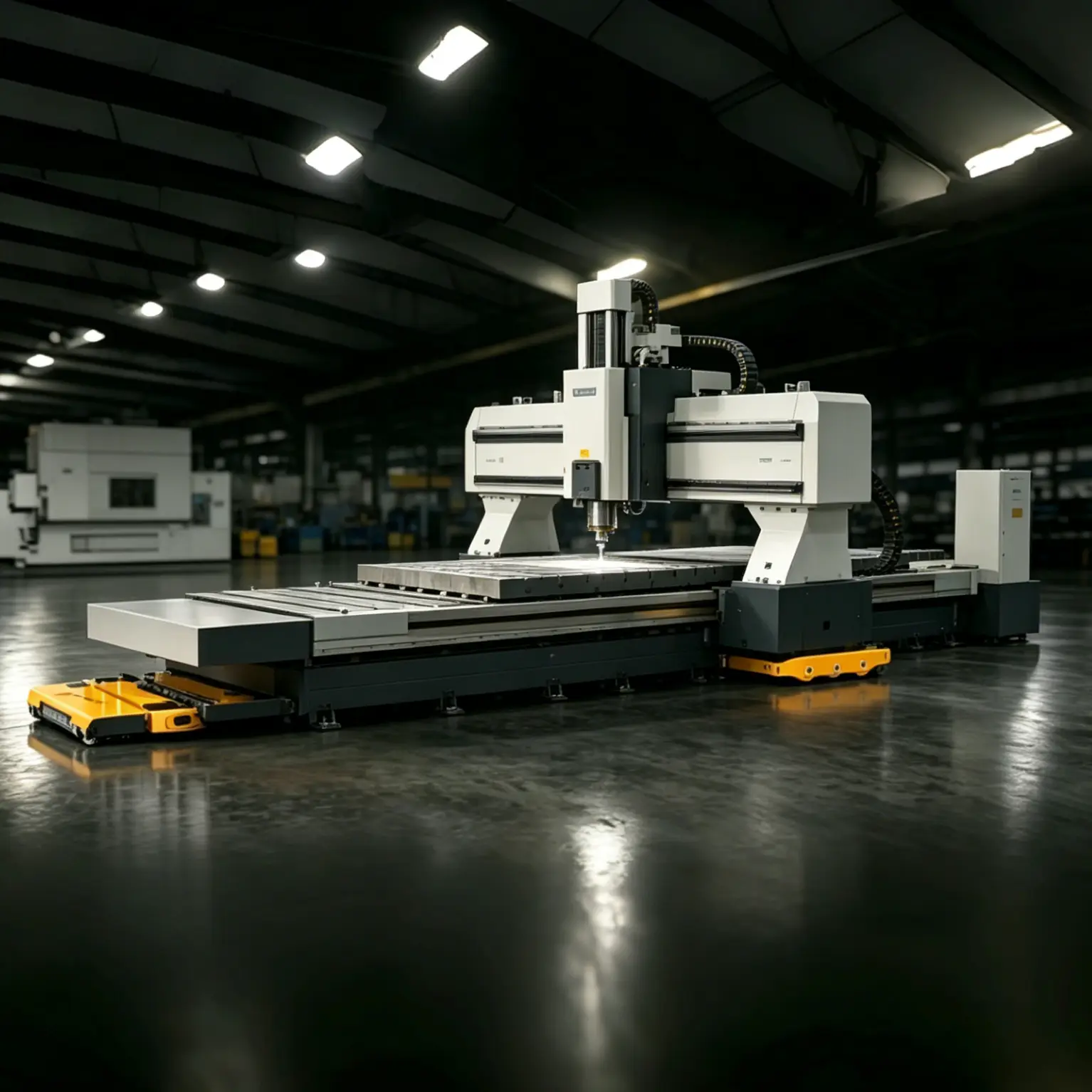

- Machine relocation — moving lathes, presses and packaging lines during layout changes.
- Mold & die handling — low-clearance positioning under storage racks.
- Warehouse & logistics — relocating heavy palletized equipment between bays.
Frequently Asked Questions
Q: Can one operator control the skate?
A: Yes. With the C7 wireless remote, one person drives, steers and stops the loaded skate from a safe distance.
Q: What floor conditions are required?
A: Smooth concrete or epoxy floors are ideal; the polyurethane wheels are non-marking.
Q: How much weight can the MH-B series move?
A: The MH-B Basic series covers 20 to 50 tons of traction per skate, with load capacities from 10 to 25 tons. For loads over 25 tons, use a synchronized multi-skate train — one powered skate plus two straight-line auxiliary wheels.
Q: What’s the difference between Basic, Professional and Lift series?
A: All three series cover the same 20-50 ton range. Basic is the entry-level option for occasional moves on smooth floors. Professional adds an industrial wireless remote and 2-year warranty for daily production use. Lift integrates a lifting function so you can raise the machine, position the skate, and lower — all from the remote.
Q: How long does the battery last?
A: The 48V lithium battery provides 4-5 hours of continuous runtime. For full-shift operation, carry one spare battery — the swappable design takes under a minute to change.
