Electric Load Moving Skates | MH-P Professional Series Machine Skate

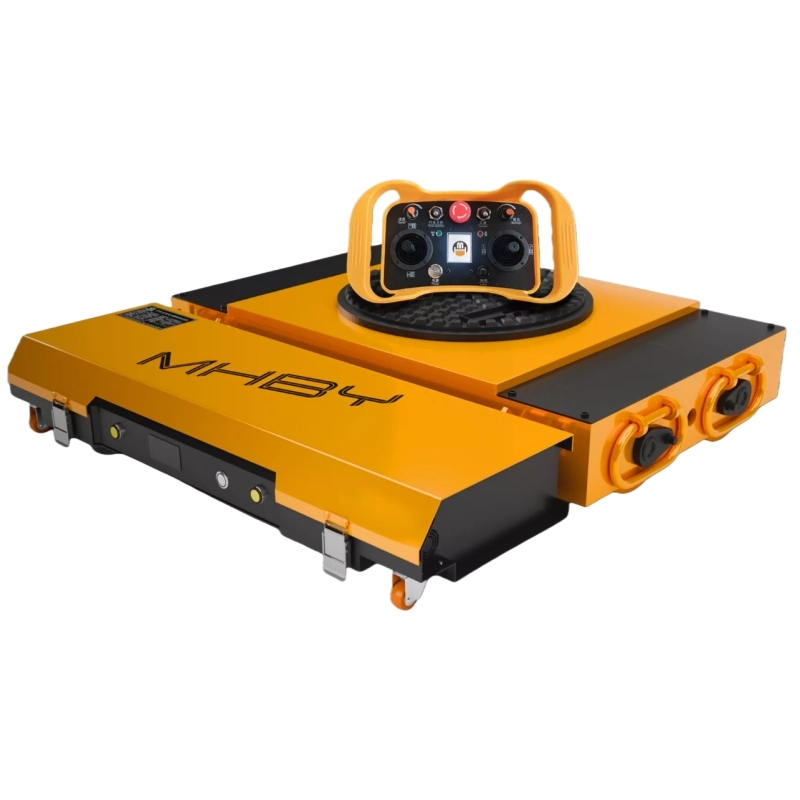

MHBY electric load moving skates (MH-P Professional series) are self-propelled machine skates that relocate heavy machinery with 20–50T of traction. Battery powered and remote-controlled, these motorized load movers combine German LANXESS polyurethane wheels with a Q355B manganese steel frame — vibration-free travel, precise positioning and one-man operation where forklifts and cranes cannot reach.
Summary of Key Features
- Professional Industrial Wireless Remote Control
- 1-Year Full Machine Warranty
- Q355B Manganese Steel Plate
- German LANXESS Polyurethane Wheels
- Reusable iron storage box
- Circular polyurethane anti slip protective pad to safeguard your equipment.
- High-precision bearings for near-silent rotation.
- Integrated motor and reducer with powerful output, quiet & stable operation, heavy-load resistance, low temperature rise and long service life.
Full specifications below.
| MODEL | MH20P | MH25P | MH30P | MH35P | MH40P | MH50P |
|---|---|---|---|---|---|---|
| Traction Capacity | 20000 kg (44000 lbs) | 25000 kg (55000 lbs) | 30000 kg (66000 lbs) | 35000 kg (77000 lbs) | 40000 kg (88000 lbs) | 50000 kg (110000 lbs) |
| Load Capacity | 10000 kg (22000 lbs) | 12500 kg (27500 lbs) | 15000 kg (33000 lbs) | 17500 kg (38500 lbs) | 20000 kg (44000 lbs) | 25000 kg (55000 lbs) |
| Drive Motor | 1500 W (2 × 750 W motors) | 2000 W (2 × 1000 W motors) | 2000 W (2 × 1000 W motors) | 3000 W (2 × 1500 W motors) | 4000 W (2 × 2000 W motors) | 5000 W (2 × 2500 W motors) |
| Power Battery | 48 V / 60 AH | 48 V / 60 AH | 48 V / 60 AH | 48 V / 120 AH | 48 V / 120 AH | 48 V / 120 AH |
| Continuous Battery Runtime | 4–5 Hours Continuous Working Time | |||||
| Drive Wheel Specification | 4 Pcs, 100 × 130 mm (4 × 5 in.) | 4 Pcs, 100 × 130 mm (4 × 5 in.) | 4 Pcs, 100 × 130 mm (4 × 5 in.) | 4 Pcs, 120 × 155 mm (4 3/4 × 6 1/8 in.) | 4 Pcs, 120 × 155 mm (4 3/4 × 6 1/8 in.) | 4 Pcs, 120 × 155 mm (4 3/4 × 6 1/8 in.) |
| Travel Speed | 10 m/min (0.37 mph), Stable Low-Speed Heavy Load Travel | |||||
| Overall Dimensions (L × W × H) | 680 × 670 × 175 mm (26 3/4 × 26 3/8 × 6 7/8 in.) | 680 × 670 × 175 mm (26 3/4 × 26 3/8 × 6 7/8 in.) | 720 × 680 × 190 mm (28 3/8 × 26 3/4 × 7 1/2 in.) | 800 × 740 × 210 mm (31 1/2 × 29 1/8 × 8 1/4 in.) | 800 × 740 × 210 mm (31 1/2 × 29 1/8 × 8 1/4 in.) | 810 × 820 × 210 mm (31 7/8 × 32 1/4 × 8 1/4 in.) |
| Net Machine Weight | 130 kg (286 lbs) | 132 kg (290 lbs) | 148 kg (325 lbs) | 210 kg (462 lbs) | 212 kg (466 lbs) | 222 kg (488 lbs) |
How These Electric Load Moving Skates Work
The MH-P Professional series mates a 48V battery pack with dual drive motors and German LANXESS polyurethane wheels under a Q355B manganese steel frame. An industrial wireless remote gives one operator full control — drive, steer, stop — for loads up to 50T traction, with vibration-free travel that protects both machinery and floors. The charger accepts 110–260V for worldwide use.
Typical Applications
- CNC & machining centers — installing and relocating machine tools with millimeter precision.
- Power equipment — transformers, generators and switchgear in substations.
- Mold & die handling — positioning heavy molds inside racks and presses.
- Shipbuilding & steel — section alignment and workshop logistics.
Compare the full range: electric load moving skates (MH-P Professional series) and motorized machine skates (MH-B basic). For a cost breakdown against manual skates, read our battery vs manual machine skates comparison.
Frequently Asked Questions
Q: Are these skates suitable for epoxy floors?
A: Yes. The LANXESS polyurethane wheels are non-marking and floor-friendly — ideal for coated workshop floors.
Q: How long does the battery last?
A: 4–5 hours of continuous working time per charge.
Q: How much weight can the MH-P Professional series move?
A: The MH-P Professional series covers 20 to 50 tons of traction per skate, with load capacities from 10 to 25 tons. For loads over 25 tons, use a synchronized multi-skate train — one powered skate plus two straight-line auxiliary wheels.
Q: What’s the difference between Professional and Lift series?
A: Both cover the same 20-50 ton range. The MH-P Professional series is self-propelled for long-distance horizontal transport. The MH-L Lift series adds an integrated lifting function so you can raise the machine, position the skate, and lower — all from the remote, no separate claw jack needed. Choose Professional for pure transport; choose Lift if you want to eliminate the jacking step.
